Colling Bed

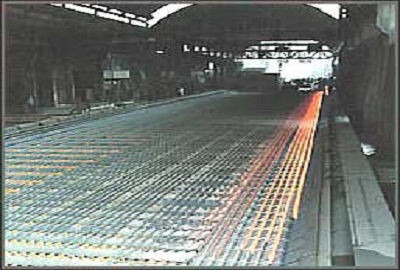

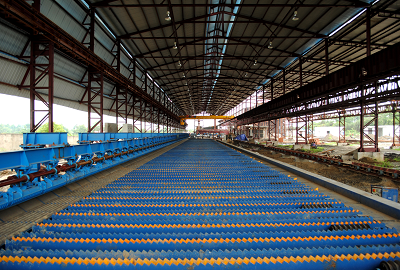

Cooling beds naturally cool the material as well as cross transfer towards the discharge end. PPRM cooling beds are designed using standard elements that can be combined in accordance with plant product mix requirements and production capacity.
Full mechanical component standardization assures constant equipment quality, as well as high performance levels. Depending on differing speed requirements, cooling bed entry can be completed with lifting aprons and natural braking, magnetic braking, or twin channel and mechanical braking. For special applications, the cooling beds are provided with slow cooling by insulated covers and forced cooling by water spray systems or water tanks. A twin or double-twin channel system for extremely high rolling speeds is available.
The types available are :
• Simple manual handled cooling bed with 'W' Channel, Stationary Platform and run out table.

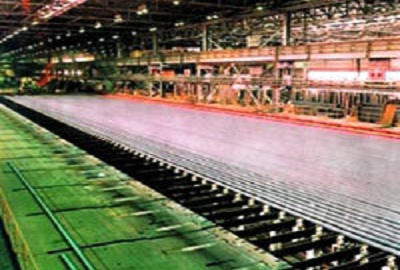

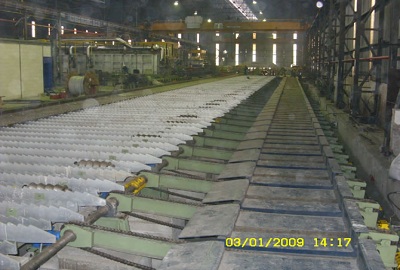

• Automatic rake type cooling bed which transfers the material by one pitch for every rake movement. These are provided with twin channel bar delivery system or run in table with apron type diverters. The bed is provided with bar aligning arrangement.
• Simple rope skid/ chain skid type cooling beds for sections.
• Turn-over type cooling bed for alloy steel which rotates the bars by one revolutions every time the rake moves by a pitch. These imparts superior straightness in material, improvised metallurgical properties as the bars are uniformity cooled.
